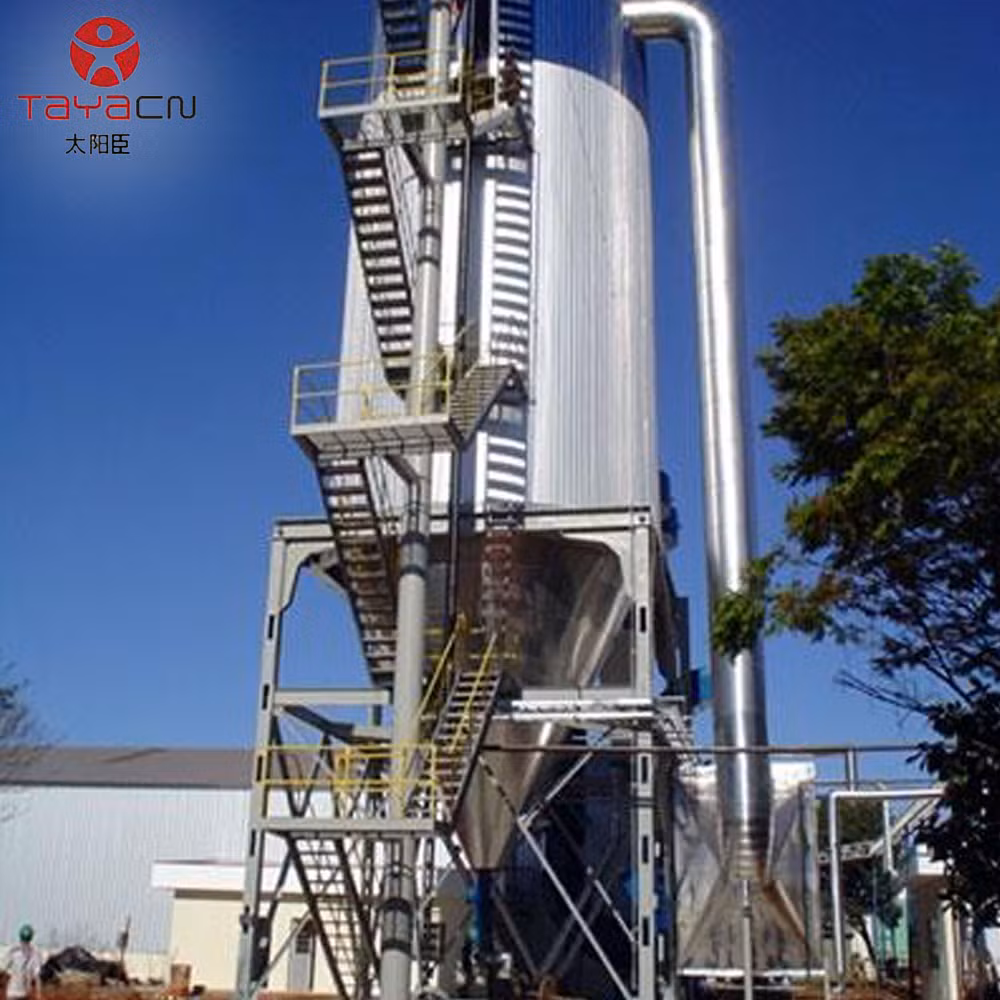

Ypg Pressure Spray Dryer for Instant Juice Powder | RFQ Sourcing Details

DESCRIPTION YPG pressure spray dryer is suitable for solution, suspension, slurry, paste material, etc. Liquid material is atomized to small fog drops. And fog drops . Moisture content is evaporated instantly.

So spray dryer features high efficiency, high mass transfer area, and short drying time, in general it is 5~30 seconds. Operating temperature can be adjusted according to actual situation, in general inlet air temperature is 150~500°C.

And its automation control degree is control, environment solution environment can be solved. FEATURE *Drying speed is high. When liquid raw material is atomized, the surface of the material will be enlarged greatly. In the hot air flow, 95% - 98% of water can be evaporated instantly.

The time of completing the drying just only several seconds. This is especially suit for drying heating sensitive material. *Finished products are granuled ball with uniform size;¬humidity and solubility are good, high quality and high purity.

*Wide range of applications, strong adoptability to raw materials, depend on the characteristics of raw material, It can apply hot air or cooling air to dry and granulate. *Simple and stable operation, brief and convenient control, easy to achieve automatic operation.

APPLICATION *Chemical industry: organic catalyst, resin, synthetic washing power , oils, thiamin, intermediate of dyestuff, white carbon, black graphite, ammonium phosphate.

*Foodstuff: amino acid and similar substances, flavoring, protein, starch, dairy products, extractive from coffee, fish powder ,extractive from meat etc. *Pharmaceutical: Chinese traditional medicines, pesticide, antibiotic, medical drinking. *Ceramics: Magnesium oxide, kaolin, all kind of metallic oxide, dolomite.

*Spray Granule: All kind of fertilizer, aluminum oxide, ceramics powder, pharmaceutical, heavy metallic super hardness steel, fertilizer, washing powder, Chinese traditional medicines.

*Spray cooling granulation: Amino fatty acid, paraffin, glycerate, tallows;in the fields of atomizing crystal, spray concentrating, and spray reaction are also applied often. Technical parameter Spec Unit water evaporate kg ration capacity overall dimension( Φ ×h) mm 1600× × × × × × ×22500 high-pressure m.

Pa 2~10 pump p
