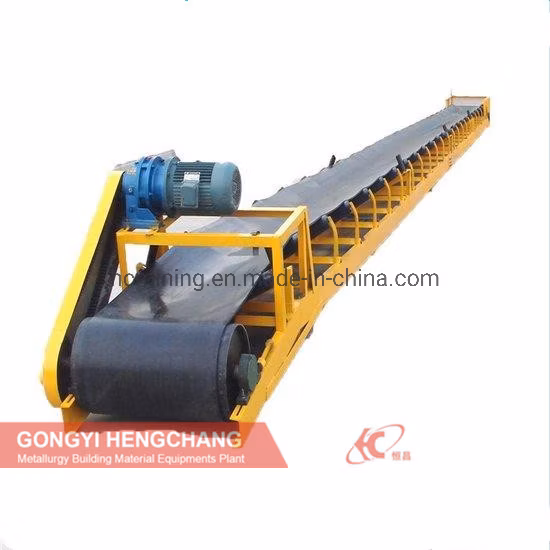

Long-Distance Overland Belt Conveyor BASIC INTRODUCTION Long distance overland flat turn belt conveyor is a continuous conveying equipment that uses steel rope core conveyor belts as traction components.

Its ultra long conveying distance and super large conveying capacity, as well as the multi-point horizontal turning curve conveying method, can maximize the satisfaction of high yield and efficient material transportation in working faces.It is a key equipment for comprehensive mining and production systems to achieve in uipment vigorously promoted and used by countries around the world.

PRODUCT FEATURES The long distance overland conveyor is a special type of belt conveyor that achieves long-distance and curved transportation. It can perform flat turns, as well as vertical convex and concave turns, forming a spatial curve.

This is achieved by lifting the inner curve of the conveyor belt, adjusting the deflection angle of the idler, and using deep groove idler groups to generate an outward centrifugal thrust during operation to overcome the centripetal force of the conveyor caused by turning, ensuring the smooth operation of the belt during turns.

By using a curved track, it can avoid obstacles or unfavorable terrain, and achieve the goal of simplying the system and saving investment by reducing or eliminating the need for intermediate transfer stations.

APPLICATION INDUSTRIES Long distance overland flat turn belt conveyor is widely used in various industries such as mining, coal, power plants, ports, docks, building materials, metallurgy, cement, chemistry, steel, etc. ADVANTAGES 1. continuous long-distance transportation, stable and reliable work 2.

large conveying capacity, high production efficiency 3. low noise, low pollution, low energy consumption 4.

simple structure and low operating costs TYPICAL PROJECT E STUDY 2km Belt Conveyor EPC project for Wood Chip Terminal - Port Industry Project Background : Terminal Berth Tonnage = 50,000 Tons Terminal Annual Throughput = 6 million Tons Total Conveyor Sets = 6 sets Total Conveyor Length = 2 Km Belt width = 2000 mm Supply Scope : belt conveyor body, steel structure, power supply and lighting system, lightning protection and grounding system, control system, water supply and drainage system, automatic fire fighting system, dust collection system, as well as yard unloading trolley.

COMPANY INTRODUCTION Manufacturer & EPC Contractor of Belt Conveyor Company History: 70 Years Stock Code: 002526 Company Subsidiaries: 18 Employees : 2600 + ( including 400+ technicians ) Company Fixed Asset : $ 700 Million Company Annual Revenue: $ 600 Million Factory Area: 2,000,000 m2 National Patents: 300 + Honor Certificates: 200 + Belt Conveyor Annual Sales Revennue: $ 150 Million Belt Conveyor Annual Output: 500 sets ( 50000 Ton) Related Industries : mining, coal, steel, mentallurgy, port, power, cement, chemical, cocking, construction materials, industrial parks, etc..

EPC General Contracting Services : project consultation, engineering design, manufacturing, supervision, installation and commissioning, operation and maintenance, and after-sales services (spare parts supply, personnel traning etc.).

BELT CONVEYOR DESIGN CAPABILITY Our company's belt conveyor has form the coal mine universal series, the DT II & DT II (A) universal series, and the dedicated series for overland conveyor, flat turning conveyor, bi-directional conveyor, large inclined angle up and down conveyor, corrugated edge protection conveyor, as well as pipe conveyor (pipe diameter φ150~850mm).

The main components have been standardized and serialized. Our design range of belt conveyor: belt width is 650~2400mm, the maximum belt speed is 6.3m/s, the maximum conveying capacity reaches 13,000 t/h, the maximum transportation distance of a single convoyor is 12.6 km, and the maximum installed power reaches
