Prefabricated House Structural Steel Structure Bu | RFQ Sourcing Details

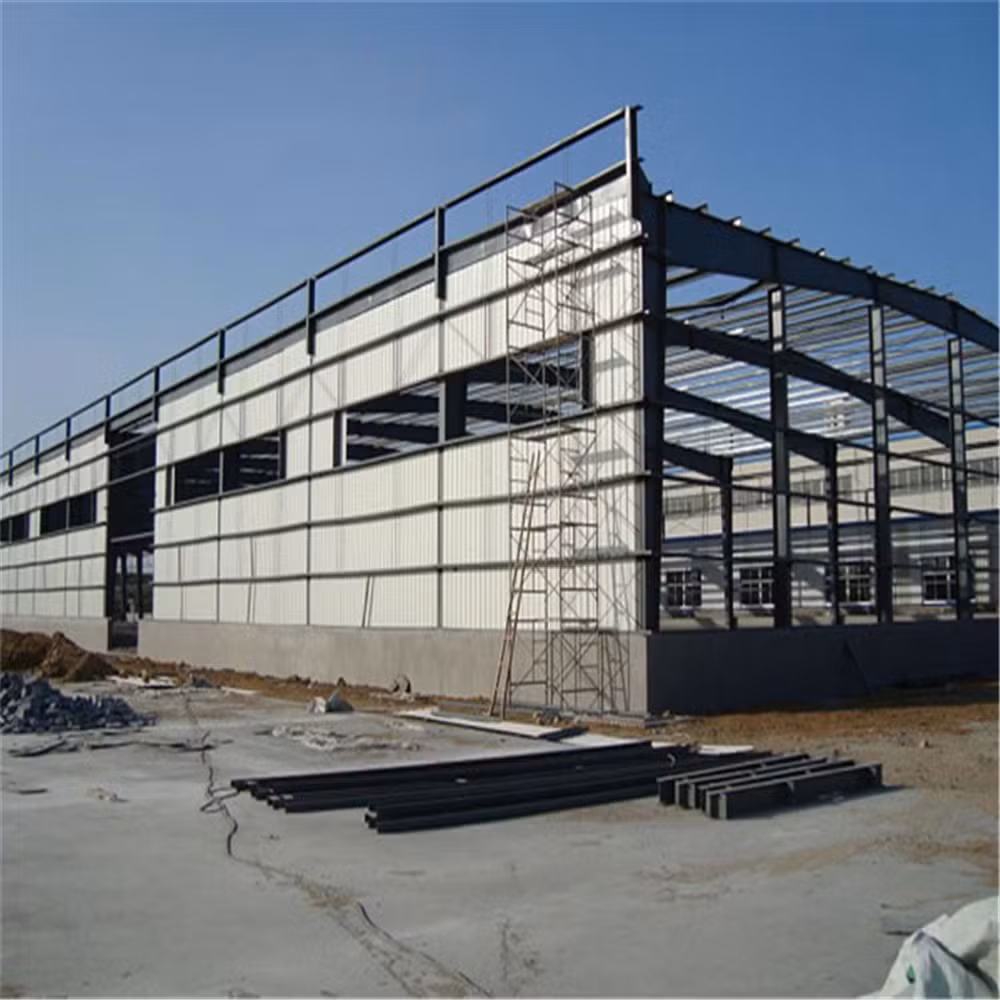

Prefabricated House Structural Steel Structure Building Rent Warehouse Construction Material Product Description Prefabricated House Structural Steel Structure Building Rent Warehouse Construction Material is mainly refers to the main bearing component is composed of steel.

Including the steel columns, steel beam, steel structure, steel roof truss.Each component using welds, bolts or rivets to connect. The roof and wall can be made of composite panel or veneer. Galvanized sheet metal can prevent rust and corrosion.

The use of self-tapping screw can make the connection between the plates more closely, to prevent leakage. You can also use composite panel for roof and wall. The sandwich is polystyrene, glass fiber, rock wool, polyurethane. They have good thermal insulation, heat insulation, fire-retardant.

The wall of the steel structure maintenance also can use brick wall. The cost of a brick wall is higher than galvanized steel roof and wall. Detailed Photos No.

Sort Name Specification: 1 Specification length No limited 2 Width Less than 11m 3 Wall height 2600mm/2800mm 4 Clear height 2600mm/2800mm 5 Roof slope 15° 6 Standard accessory Wall board 75mm thickness double color-steel sandwich panel with polystyrene foam inside. Heat Insulated coefficient is 0.041w/m.k.

Heat transfer coefficient is 0.546w/ m².k. 7 False ceiling 75mm thickness double color-steel sandwich panel with polystyrene foam inside. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.546w/ m².k.

8 Roof board color steel corrugated sheet, 0.5mm thickness 9 Outside door Security door, single door with dimensions of 900*2100mm, furnished with a handle lock with 3keys. Doorframe is made of 1.2mm steel, and door is made of 0.7 mm steel, 90mm thick rock wool insulation foam.

10 Inside door SIP, single door with dimensions of 750*2000mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam.

11 Window(W-1) PVC, white color, with dimensions of 1200*1200mm, glazed with glass in a thickness of 5mm, two bay fixed, and two bay sliding, supplied with fly screen. 12 Window(W-2) PVC, white color, with dimensions 500*500mm, glazed with glass in a thickness of 5mm, casement opening, supplied with fly screen.

13 Channel Galvanized Steel Plain Sheet press moulding Material: Q235. Painted 14 Post Square steel tube Material: Q235. Painted 15
