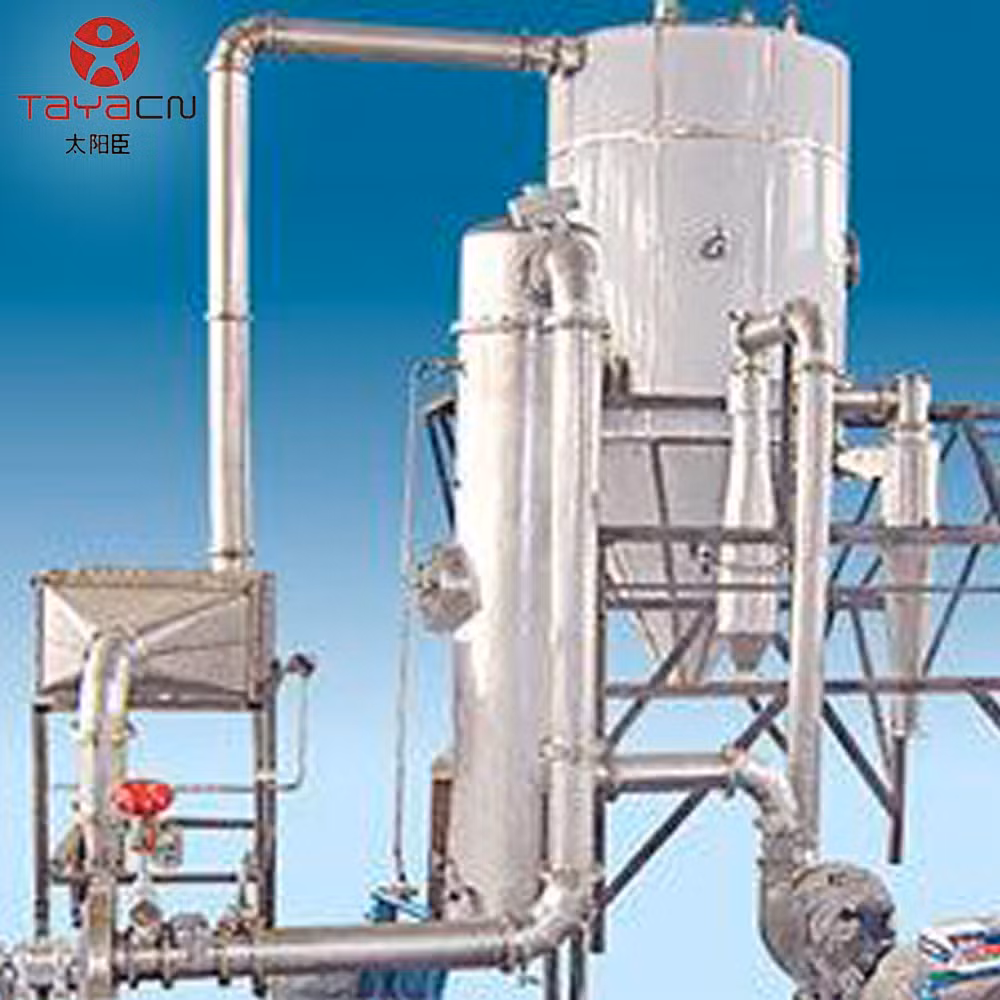

Drying System Plant for Algae, Fodder Antibiotics | RFQ Sourcing Details

LPG Spray Dryer Description LPG Spray dryer is a wide applied process in the liquid process shaping and drying industry. Particularly it is suitable for producing powder, granule or block solid product from solution, emulsion, suspending liquid, and pumped paste liquid.

Therefore when the distribution of granule size, final moisture, bulk density, granule shape of finished product must be conformed to accuracy standard, the spray drying is an ideal process.

LPG Spray Dryer Application It's widely used in foodstuff, pharmaceutical and chemical industries, such as food flavor, egg powder, amino acid product, magnesium citrate, tea, herbal extract, beef powder, protein, maltodextrin, blood, starch, food ingredients, yeast, collagen, whey, Mg citrate, humic acid, ceramic powder, vitamin, urea resin, pectin, stevia, spirulina, microalgae, gum arabic, pigment, PAC, zinc sulfate, organic magnesium compounds, vegetable juice, coffee, creamer, coconut milk, gelatin etc.

Working Principle of LPG Spray Dryer After filtering and heating, the hot fresh air enters into the air distributor at the top of the drying chamber, distributed in spiral way uniformly from up to down.

At the same time, the feeding liquid is pumped to the top atomizer, then be sprayed to an extremely fine mist liquid drop. Through the short time of direct , the moisture evaporated at once, the solid remains to be powder.

The dry powder will be discharged continuously from the bottom of the drying tower and cyclone collector, the exhaust air will be discharged after cleaning. (1) Start-stop of the dryer is quite simple (2) After material feeding is stopped, they can be easily discharged out of the dryer by harrows.

(3) Careful cleaning and observation can be carried inside the equipment through the large-scale viewing window.

Model Food / Industrial Spray Dryer MODEL LPG- Inlet air temperature ≤ 350°C Outlet air temperature 80-90°C Evaporate capacity (kg/h) Atomizer type compressed air drive mechanical drive Rotary speed Diameter of atomizer disc (mm) Heating source Electricity Electricity/LPG/ Electricity/LPG/ Electricity/LPG/ Electricity/LPG/ Electricity/LPG/ Natural gas/Oil/Steam Natural gas/Oil/Steam Natural gas/Oil/Steam Natural gas/Oil/Steam Natural gas/Oil/Steam E
