Cement Clinker Grinding Mill Plant, Clinker Grind | RFQ Sourcing Details

Cement clinker grinding mill plant Cement mill Usage and application: The cement mill is the key equipment for re-grinding cement clinker after pre-grinding by system ingredients. It plays a vital role in the cement production line and cement production process.

Cement mills are mainly used in cement, silicate products, new building materials, refractory materials, glass ceramics, and other production industries.

Cement mill Working principle: When the cylinder of the cement grinding mill rotates driven by the transmission gear, under the inertial centrifugal force, the grinding media will stick onto the lining board on the internal wall of the cylinder of the grinding mill and rotate together with the cylinder.

The grinding media are brought to a certain height, and then fall down under the gravity, and during this process, the grinding media will crush the materials inside the cylinder, and at the same time the grinding media repeatedly move up and down inside the rotating grinding mill and will have sliding and rolling movement, so that the grinding media, the lining board and the materials to be ground will grind with each other, so that the materials are crushed to a finer granularity.

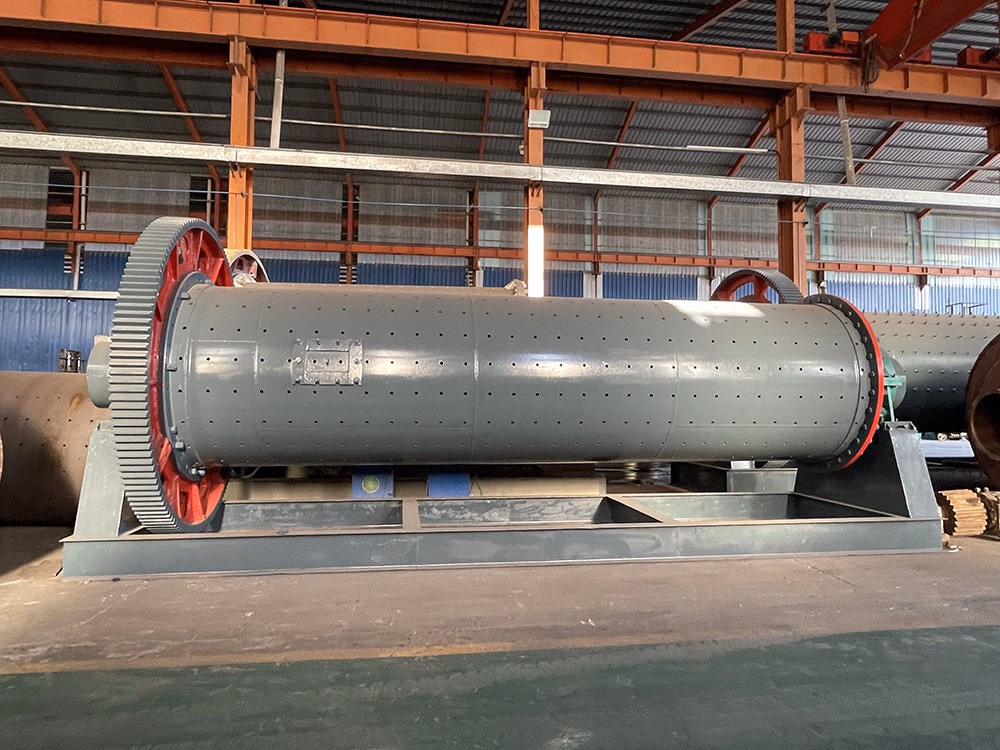

Clinker grinding ball mill Features: Using advanced process design, the cylinder is tightly sealed to ensure dust overflow during operation. The cylinder is cast with high-quality steel to extend the service life.

The good effect of saving energy, strong durability, low cost of grinding The machine output can be increased by 15-20% compared with the general cement mill.

the power consumption is reduced by about 10% Clinker grinding ball mill Technical specifications: Specification (m) Capacity (t/h) Rotating speed (r/min) Grinding body (t) Motor Reducer Weight (t) Model Power (kW) Model Speed ratio Φ1.2x YR250M-6 55 ZD Φ1.5x JR ZD Φ1.83x JR ZD Φ1.83x JR ZD Φ2x JR ZD Φ2.2x JRQ158-8/YR ZD Φ2.2x6.5 14 Closed circuit 21.4 30 JRQ158-8/YR ZD Φ2.2x JR ZD Φ2.2x JR ZD Φ2.2x JR ZD Φ2.2x Closed circuit 21.4 43 JR ZD Φ2.2x YR630-8/
