Carton Unloading Conveyor for Carton Handling | RFQ Sourcing Details

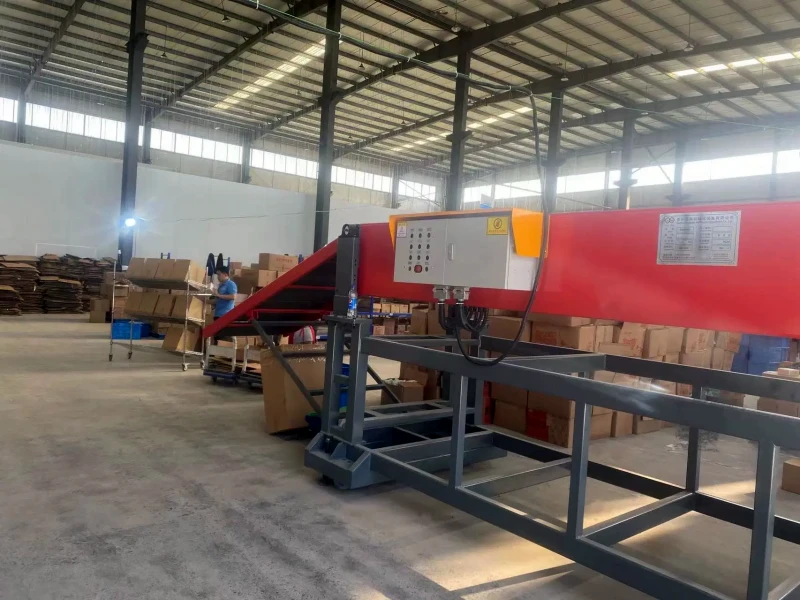

Home > Porducts Detail Carton Unloading Conveyor for Carton Handling 10/08/2025 admin A Carton Unloading Conveyor is a conveyor system designed to unload cartons, boxes, or packages from trucks, trailers, or containers efficiently and safely.

It’s widely used in warehouses, logistics hubs, e-commerce fulfillment centers, postal facilities, and distribution centers, where speed and flexibility in material handling are critical.

Types of Carton Unloading Conveyor A.Gravity Roller Unloading Conveyor Our Gravity Roller Unloading Conveyor is a non-powered conveyor system designed for the manual or gravity-assisted unloading of cartons, boxes, or bags from trucks and containers. No power needed — boxes move by gravity on slightly inclined rollers.

Lightweight cartons and short unloading distances. Low cost and easy to install. Extendable or flexible (accordion type). Suitable for docks and small warehouses. Material: Zinc-plated or stainless-steel rollers with adjustable legs.

B.Flexible Powered Roller Conveyor Our Flexible Powered Roller Conveyor is a motor-driven, expandable conveyor system designed for efficient loading and unloading of cartons, bags, and parcels in warehouses, logistics centers, and distribution facilities. Powered rollers drive cartons automatically.

Flexible (expandable and bendable) to adapt to truck layouts. Medium to heavy cartons, variable truck sizes. Extendable and retractable design. Adjustable height and length. Direction control (forward/reverse). Castor wheels for mobility. Drive: 24V DC motorized rollers or chain drive. C.

designed for efficient carton loading and unloading from trucks, containers, and trailers. It enables operators to easily transfer goods between the vehicle and the warehouse, minimizing manual handling and improving operational efficiency. Motorized extendable conveyor that can reach deep inside trucks or containers.

Large-volume carton handling in logistics and courier hubs. Extendable sections (2–4 on (can also load cartons). Belt Type: PVC belt, smooth or grip surface.

D.Combination Carton Unloading System Our Combination System of Carton Unloading integrates multiple types of conveyors—such as n for unloading cartons, parcels, and packages from trucks or containers. flexible roller conveyor → directed to sorting area. Common in Amazon, DHL, Fed. Ex, and e-commerce facilities.

Carton unloading system with belt conveyor and flexible roller conveyor system.

Carton unloading with gravity roller conveyor system Carton unloading with f Carton Unloading Conveyor Parameter Range Conveyor Type Belt / Roller / Flexible Length (retracted) 6 – 8 m Length (extended) 12 – 18 m Belt Width / Roller Width 500 – 800 mm Height Adjustment 800 – 2500 mm Belt Speed 10 – 30 m/min (adjustable) Drive Motor Power 2.2 – 7.5 kW Load Capacity 30 – 50 kg per carton Frame Material Mild Steel (powder-coated) Operation Forward / Reverse / Stop / Extend / Retract Applications of Carton Unloading Conveyor Industry Application Conveyor Type Warehousing & Distribution Truck carton unloading on unloading/loading Powered roller conveyor Food / Beverage Box handling at dock Gravity roller conveyor Manufacturing Finished goods transfer Fixed or portable belt conveyor Optional Accessories LED lights inside the container area Safety emergency stop buttons Lifting platform (dock height adjustment) Bag/carton stopper at discharge end Side guides or guard rails Integration with barcode scanner or sorter Dust and noise suppression covers Why to Choose Our Carton Unloading Conveyor?

Efficiency Gains: Can achieve unloading rates of up to 2,000 cartons per hour, cutting manual labor by up to 50%. Safety Enhancements: Adjustable heights, ergonomic designs, and safety features like emergency stops and sensors reduce worker strain and accidents.

Versatility: Suitable for 20ft or 40ft ISO containers, small trucks, or ground-level operations;often portable for easy relocation. Integration: Easily connects to downstream systems like powered roller conveyors, auto-palletizers, or warehouse automation.

Would you like me to prepare a technical data sheet or 2D layout drawing for a carton unloading system — for example: area)? That way, I can include dimensions, motor power, belt speed, and layout arrangement for your intended application.
