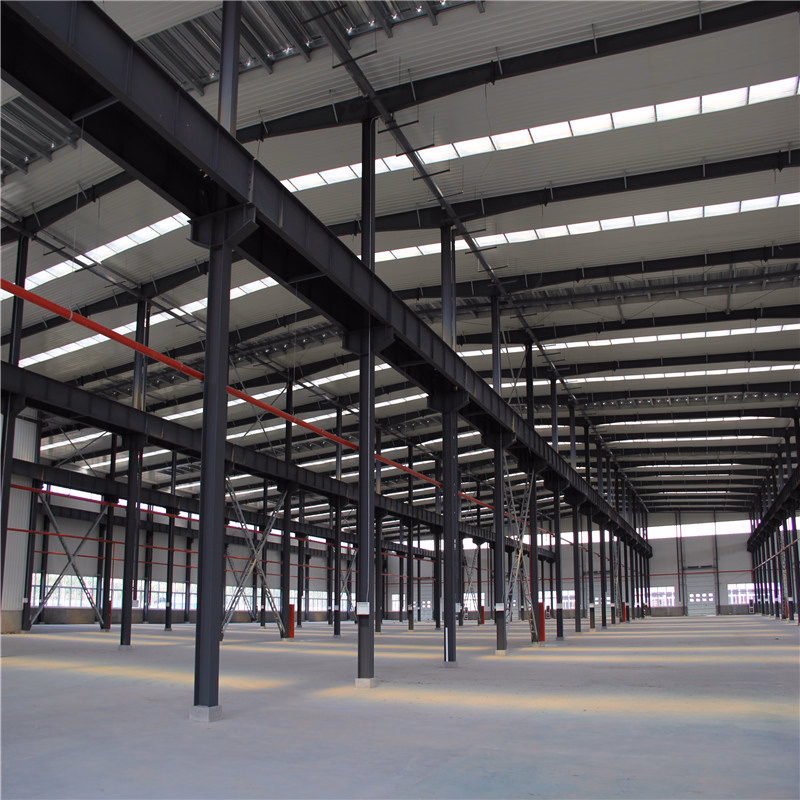

Prefabricated Metal Construction Steel Structures Prefab Warehouse Workshop Building Material Product Description: Prefabricated Metal Construction Steel Structures Prefab Warehouse Workshop Building Materialhas all internal design built as per customer's request.

Made of blue glass wool sandwich panel, the roof panel presents both pleasant appearance with rich colors and good performance in load-bearing, thermal insulation and fire resistance. The wall panel is built using brick MU10 and motar M5 under 1.2 meters and white glass wool sandwich panel above1.2 meters.

It is soundproof and resistant to bacteria, mould and corrosion, thus allowing the workshop to keep clean and healthy. Therefore, our design of this steel workshop is ideally suitable for food processing factories with high requirement to hygiene. No.

Sort Name Specification: 1 Specification length No limited 2 Width Less than 11m 3 Wall height 2600mm/2800mm 4 Clear height 2600mm/2800mm 5 Roof slope 15° 6 Standard accessory Wall board 75mm thickness double color-steel sandwich panel with polystyrene foam inside. Heat Insulated coefficient is 0.041w/m.k.

Heat transfer coefficient is 0.546w/ m².k. 7 False ceiling 75mm thickness double color-steel sandwich panel with polystyrene foam inside. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.546w/ m².k.

8 Roof board color steel corrugated sheet, 0.5mm thickness 9 Outside door Security door, single door with dimensions of 900*2100mm, furnished with a handle lock with 3keys. Doorframe is made of 1.2mm steel, and door is made of 0.7 mm steel, 90mm thick rock wool insulation foam.

10 Inside door SIP, single door with dimensions of 750*2000mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam.

11 Window(W-1) PVC, white color, with dimensions of 1200*1200mm, glazed with glass in a thickness of 5mm, two bay fixed, and two bay sliding, supplied with fly screen. 12 Window(W-2) PVC, white color, with dimensions 500*500mm, glazed with glass in a thickness of 5mm, casement opening, supplied with fly screen.

13 Channel Galvanized Steel Plain Sheet press moulding Material: Q235. Painted 14 Post Square steel tube Material: Q235. Painted 15 Purline Square steel tube Material: Q235. Painted 16 Roof truss Square steel tube Material: Q235. Painted 17 Decoration and connection color steel shee
